Welcome to Sinocryo: Your Trusted Source for High-Quality Cryo Tanks in China
At SINOCRYO, we specialize in providing a full range of cryo tanks manufactured to meet the most demanding industry standards. Our cryo tanks are designed for versatile use across a multitude of industries, ensuring high-quality storage and transport solutions for cryogenic gases. Serving a global client base, we offer a variety of cryo tank models that cater to all major market demands, supporting applications in sectors such as healthcare, energy, manufacturing, and food processing.
Our Cryo Tank Models
Meeting Market Demand with Precision
Sinocryo offers cryo tanks in various capacities, configurations, and insulation types. We understand the diverse needs of the cryogenics market, and our cryo tank selection includes models like 180L, 500L, 1000L, up to high-capacity 10,000L units. Each cryo tank model is crafted with precision, ensuring durability and safe storage, whether for stationary or mobile applications. Our cryo tanks also include specialty models designed for liquid oxygen, liquid nitrogen, liquid argon, and liquid carbon dioxide, meeting the requirements for both industrial and medical applications.
The versatility of cryo tanks makes them essential in numerous sectors:
- Medical and Healthcare: In healthcare, cryo tanks are crucial for the safe storage of oxygen and nitrogen. They are used in hospitals for respiratory applications and in laboratories for storing biological samples.
- Energy and Industrial Manufacturing: Cryo tanks are vital in energy production, particularly for liquefied natural gas (LNG) storage. In manufacturing, they support welding processes by supplying critical cryogenic gases.
- Food and Beverage: Cryogenic freezing, commonly used in the food industry, relies on cryo tanks to store liquid nitrogen, ensuring freshness in large-scale food processing facilities.
Cryogenic and micro bulk tanks for all gas consumption needs
Our PRODUCTS

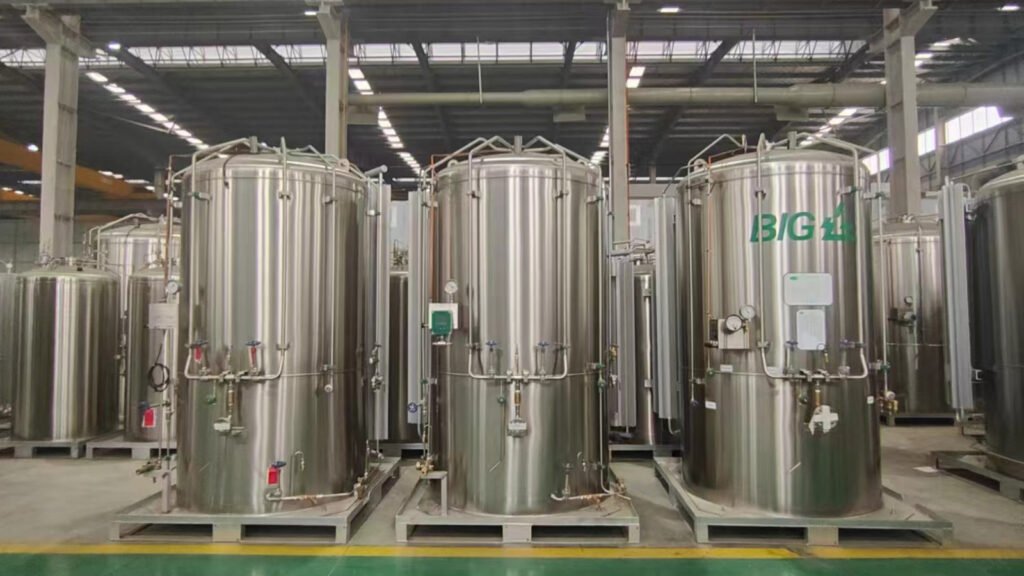

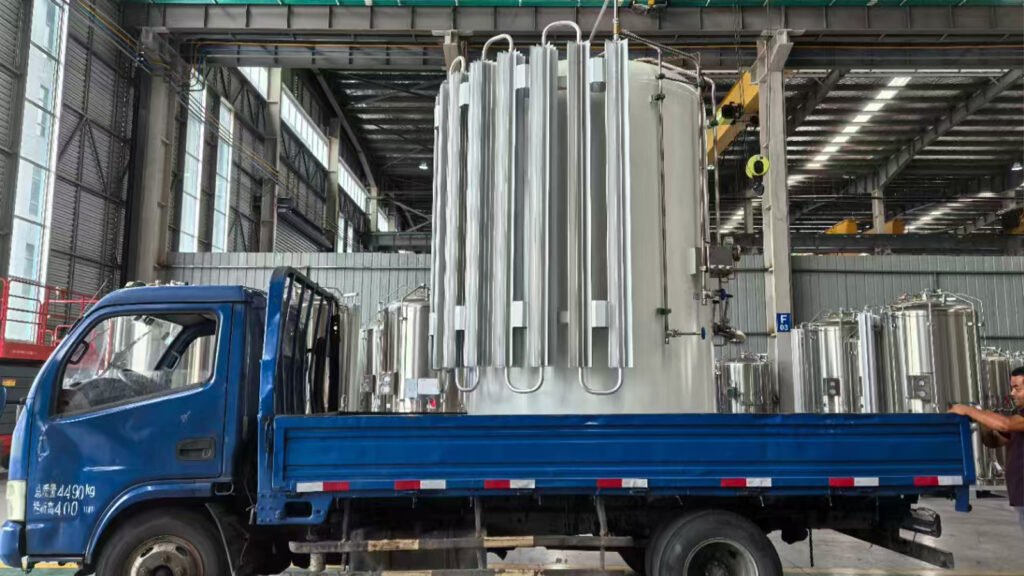

The Cryo Tank (Micro Bulk Tank) functions as a compact gas supply station, seamlessly integrating pressurization and vaporization. This Cryo Tank is designed for easy mobility and lifting, requiring no foundation and occupying minimal space. Compared to traditional gas cylinders, the Cryo Tank provides extended maintenance intervals, slower self-pressurization, higher gas flow rates, and faster pressurization. It can also be equipped with remote monitoring, enabling real-time access to tank liquid levels, pressure, and temperature via app and internet for efficient management.
- Nominal Specifications: 450L-10000L
- Working Pressure: 0.8~3.4 MPa
- Applicable Media: LOX, LIN, LAR, LNG, LCO2, LN₂O
- Design Standards: GB, ASME, EN, DOSH, MOM, CRN
- Base Structure: Pallet

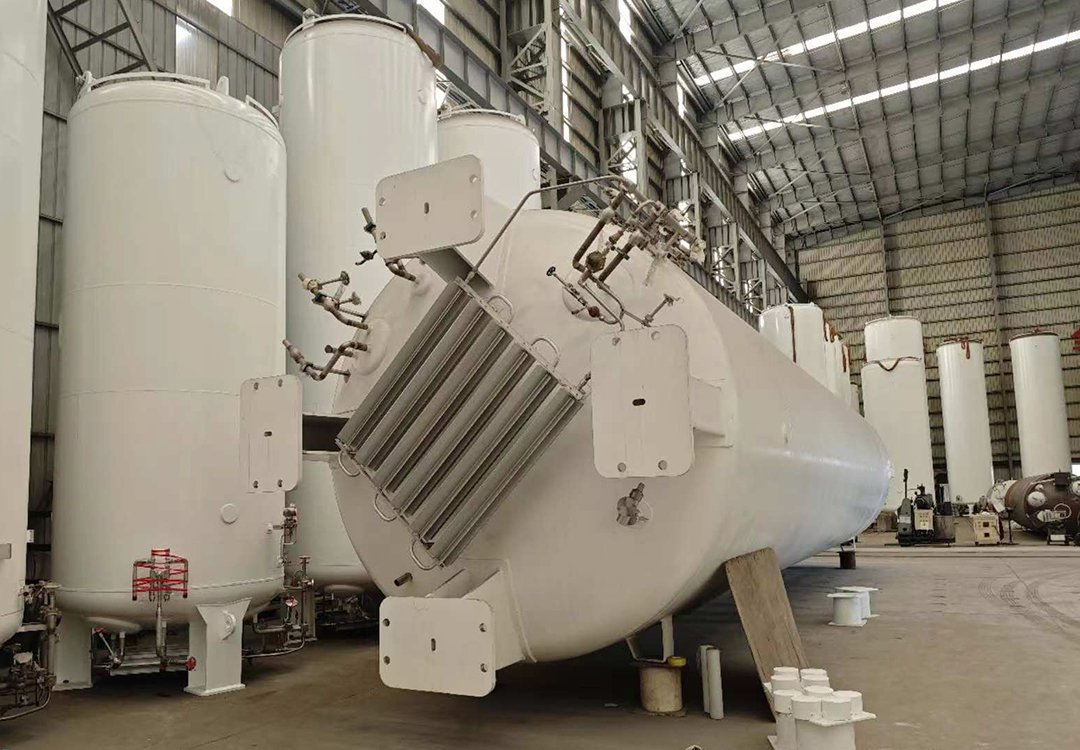

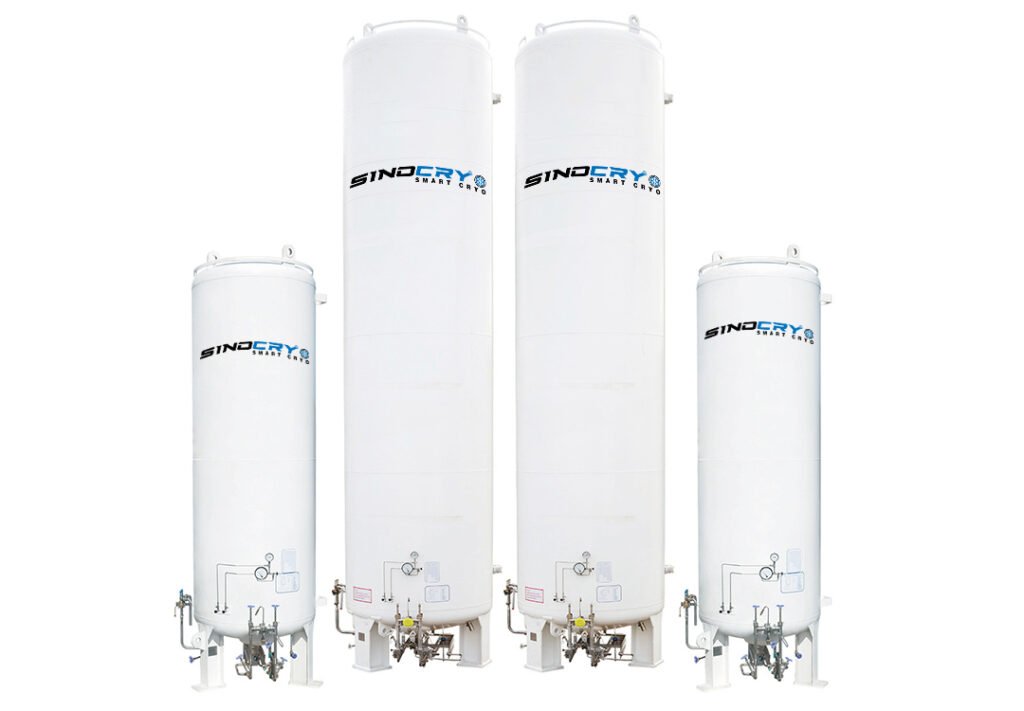

The Cryo Tank (Large-Scale Cryogenic Liquid Storage Tank) is designed for efficient storage and use of cryogenic liquids, featuring advanced vacuum technology for superior insulation, extended vacuum retention, and reduced maintenance costs. With modular, user-friendly external piping, this Cryo Tank offers convenient operation and easy maintenance, making it ideal for long-term cryogenic storage applications.
- Nominal Specifications: 5000L-350000L
- Working Pressure: 0.2~3.4 MPa
- Applicable Media: LOX, LIN, LAR, LNG, LCO2, LN₂O
- Design Standards: GB, ASME, EN, DOSH, MOM, CRN
- Base Structure: Support legs, Skirt Support, Saddle
The Cryo Tank T75 ISO Tank Container is engineered for the secure transport of cryogenic liquids across road, waterway, and rail networks. This Cryo Tank features high-vacuum insulation technology, providing exceptional low-temperature insulation for safe, efficient handling of cryogenic liquids in multimodal transport.
- Nominal Specifications: 20feet, 40feet
- Working Pressure: 0.8~2.5 MPa
- Applicable Media: LOX, LIN, LAR, LNG, LCO2
- Design Standards: GB, ASME, EN

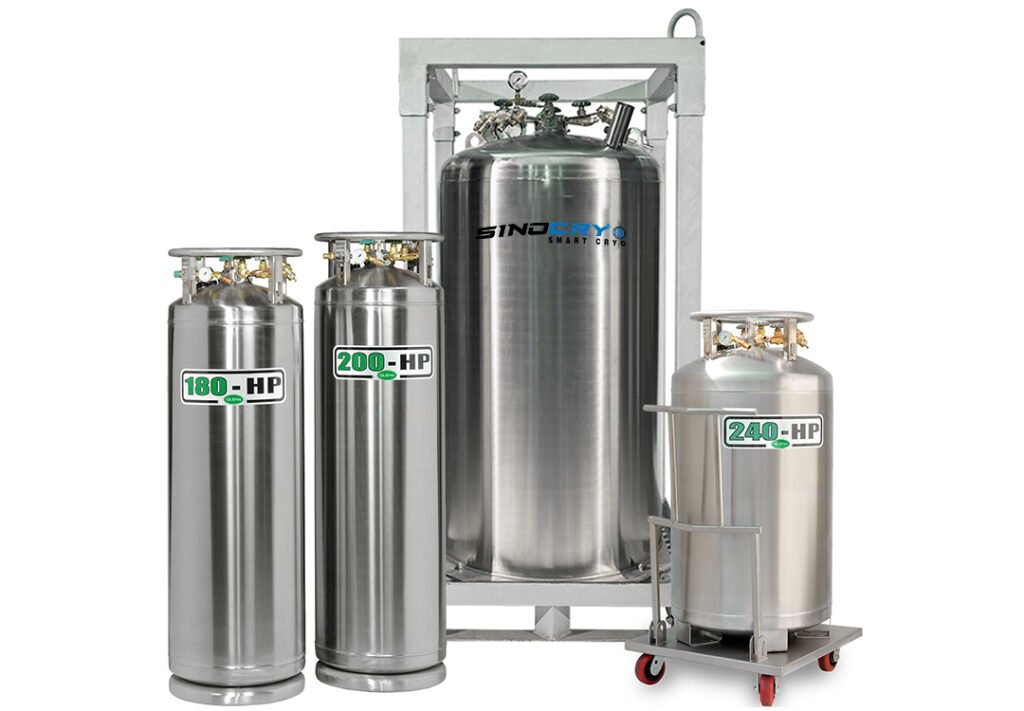

The Cryo Tank (Welded Insulated Cylinders, a.k.a. Dewar Flask) provides a steady, continuous gas supply at constant pressure. Constructed with stainless steel for both inner and outer containers, this Cryo Tank features ultra-low thermal conductivity and a high-quality vacuum system, ensuring exceptional insulation performance.
- Nominal Specifications: 175L-499L
- Working Pressure: 1.4~2.9 MPa
- Applicable Media: LOX, LIN, LAR, LNG, LCO2
- Design Standards: GB, ASME, EN, DOT
- Base Structure: Rubber Damping, Frame

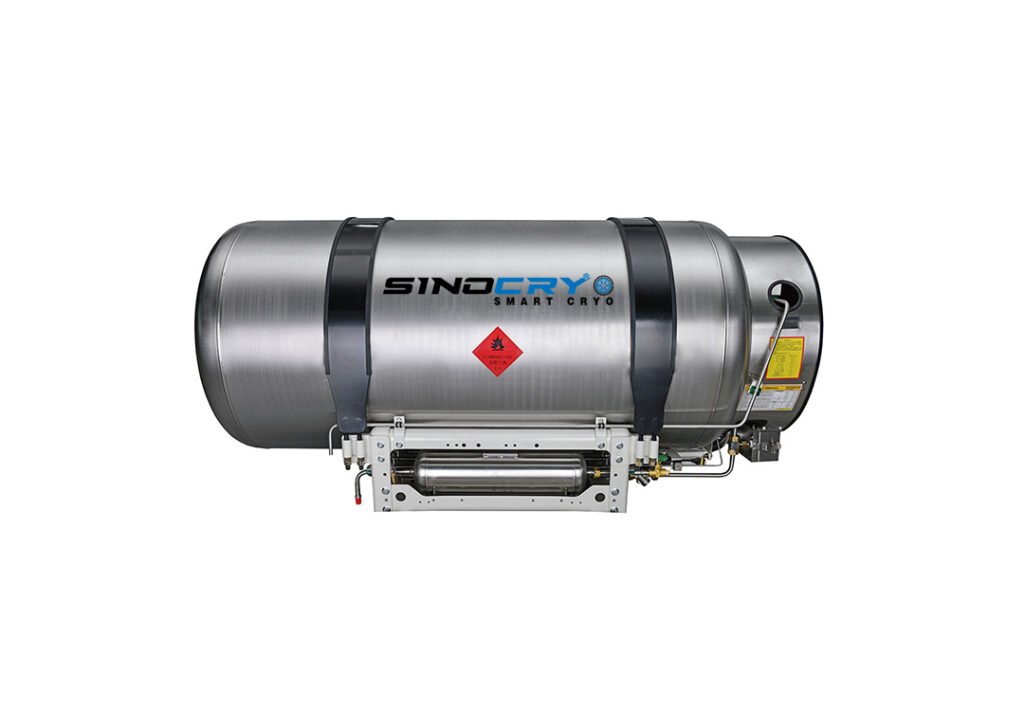

The Cryo Tank (On-board LNG Tank) serves as a vehicle fuel tank, supplying natural gas at a stable pressure to the engine. This Cryo Tank undergoes rigorous testing, including vibration, fire, and drop tests, ensuring top-tier safety and reliability for fuel storage.
- Nominal Specifications: 175L-1500L
- Working Pressure: 1.4~1.6 MPa
- Applicable Media: LNG (Liquefied Natural Gas)
- Design Standards: GB, ASME, EN, DOT, TPED
Vaporizers, available in ambient and water bath types, are primarily used to heat and vaporize cryogenic liquids, including liquid oxygen (LO₂), liquid nitrogen (LN₂), liquid argon (LAr), liquefied natural gas (LNG), liquid carbon dioxide (LCO₂), ethylene (LC₂H₄), liquid ammonia (LNH₃), liquefied petroleum gas (LPG), and liquefied dimethylmethane (LC₃H₈). These vaporizers ensure efficient and reliable conversion of cryogenic mediums for diverse applications.
- Single flow rate: 50-10000 Nm³/h
- Working pressure: 0.5~35.0 MPa
A dry ice pelletizer is a machine that converts liquid carbon dioxide (CO₂) into solid dry ice pellets, typically used in cleaning, cooling, and industrial applications. Here’s a detailed breakdown:
How It Works
Input: Liquid CO₂ (stored in pressurized tanks) is injected into the pelletizer.
Process:
Expansion: Liquid CO₂ rapidly expands into “snow” at –78.5°C (–109.3°F).
Compression: The snow is hydraulically pressed through a die to form dense pellets (usually 3mm–16mm diameter).
Output: Uniform dry ice pellets ready for use.

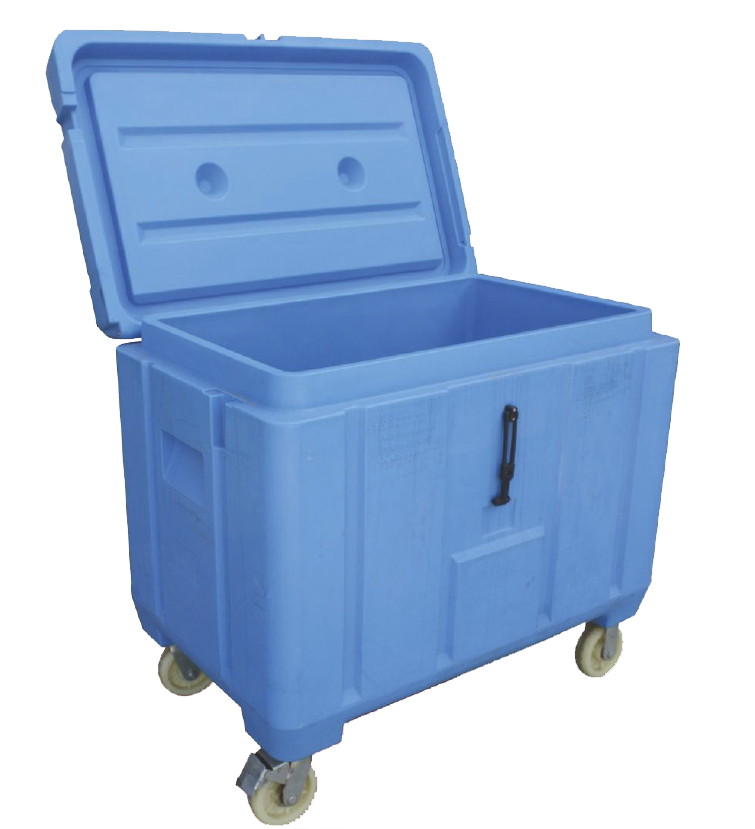

A Dry Ice Incubator is a specialized low-temperature storage device designed to maintain ultra-cold environments (typically –78°C or lower) using dry ice (solid CO₂) as a cooling agent. It is widely used in biomedical research, vaccine storage, and industrial applications where standard refrigeration is insufficient. Here’s a comprehensive guide:
1. Key Features
Temperature Range:
Maintains –30°C to –90°C, depending on design and dry ice replenishment frequency.
Insulation:
Vacuum-sealed walls or high-density foam to minimize heat transfer.
Capacity:
Ranges from portable units (10L–50L) to large stationary models (100L+).
Safety:
CO₂ venting systems to prevent gas buildup (critical for confined spaces).
Digital temperature alarms and backup power options.

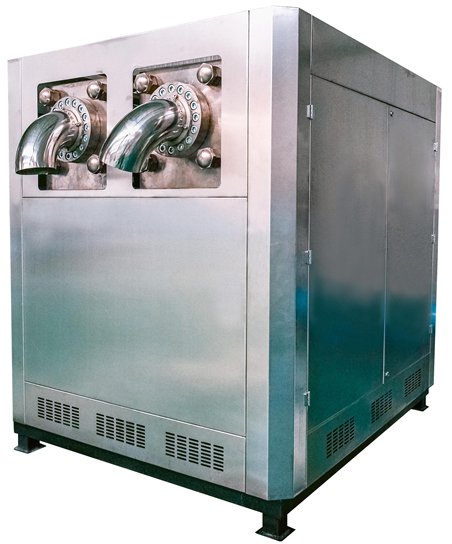

The Dry Ice Pelletizer & Incubator Set is a specialized system for producing and maintaining dry ice pellets, commonly used in laboratories, medical facilities (e.g., vaccine storage), food processing, and industrial cleaning.
Function
Converts liquid CO₂ into solid dry ice pellets (typically 1mm–3mm in diameter).
Uses high-pressure compression to form pellets instantly.
Key Features
Pellet Size Control: Adjustable settings for pellet diameter.
Output Capacity: Ranges from 5kg/h to 500kg/h (varies by model).
Automation: Some models include automated feeding and pellet collection.
Safety: Built-in ventilation to prevent CO₂ buildup.
Applications
- Cold Chain Logistics: Packaging for temperature-sensitive shipments (e.g., vaccines, biologics).
Industrial Cleaning: Dry ice blasting for surface decontamination.
Food Processing: Quick freezing of perishable goods.
Applications of Cryo Tanks Across Industries
Our projects
we are committed to nothing but excellence
Who Uses Our Cryo Tanks?
SINOCRYO, SMART CRYO
Why Choose Sinocryo’s Cryo Tanks?
Our cryo tanks represent the pinnacle of Chinese manufacturing, embodying quality, durability, and value. Sinocryo’s cryo tank models meet international standards, providing reliable performance that companies worldwide have come to trust. Explore our site to find the cryo tank solution that fits your needs.
We are always ready to serve your cryogenic liquid storage needs
Get in touch with us
Ready to find the ideal cryo tank solution for your needs? At Sinocryo, we’re here to help you select the right cryo tank model that fits your specifications. Whether you’re looking to equip a medical facility, streamline industrial operations, or enhance food processing capabilities, our cryogenic experts can guide you through our comprehensive range of cryo tanks.
Contact us for product details, technical support, or a customized quote. We’re committed to ensuring you receive the highest level of service and support every step of the way. Reach out via phone, email, or our online inquiry form, and let’s start building your efficient and reliable cryogenic storage solution today.
